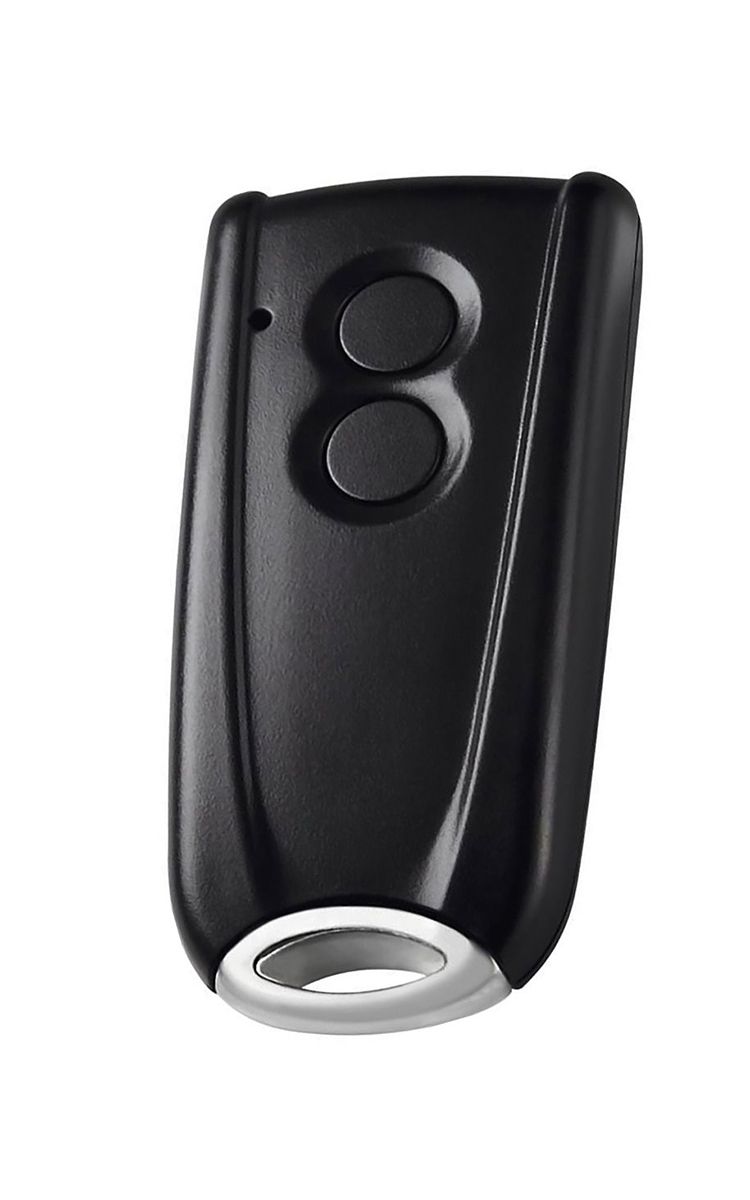

Replacement radio (RF) remote control fully compatible with type HÖRMANN Ecostar RSC2 433 MHz ProLift ProPort S D.

A perfect 1:1 copy designed and manufactured by our company – has all functions of the original remote for these HÖRMANN models: ASG, ECOLIFT, ECOSTAR, HORMANN, ISOMATIC500, LIFTRONIC 500, LIFTRONIC700, PORTONIC D5000, PROLIFT 500, PROLIFT 700, PROPORT D, PROPORT S, RSC2, RSC2-433, TR20L002A (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

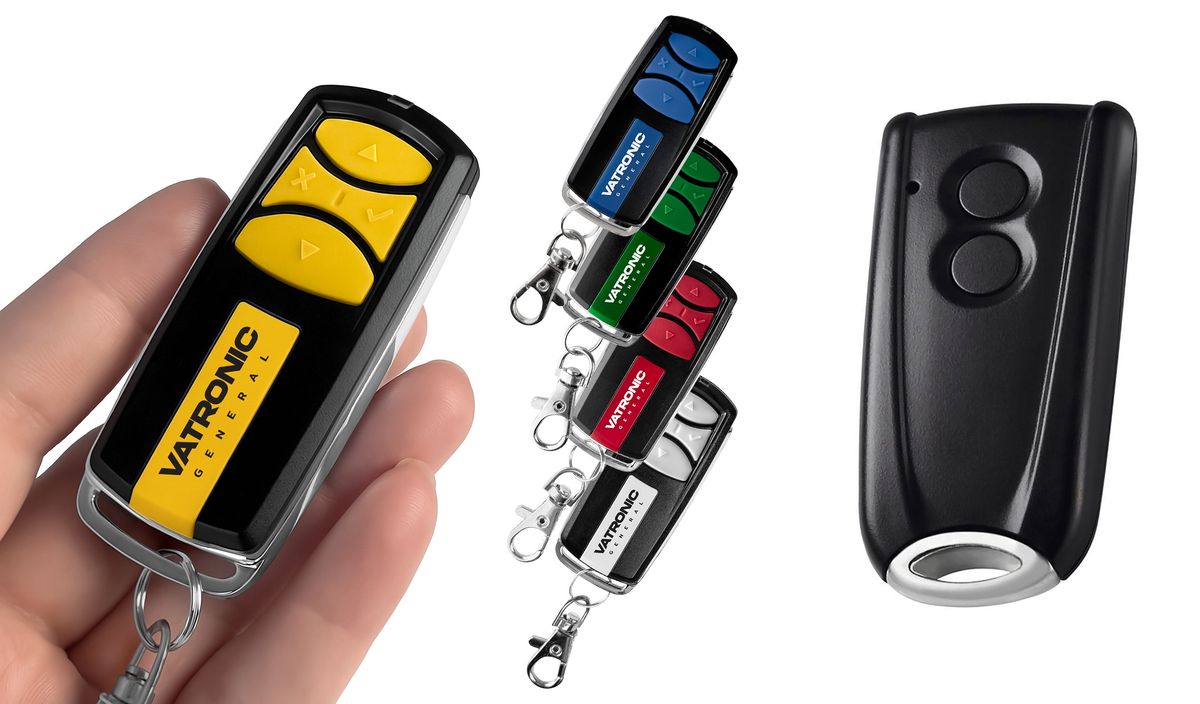

This remote control is available on branded remote control General VATRONIC (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General VATRONIC fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multi-frequency auto-scan remote control.
• Copying/cloning transmitting code/protocol from the original remote.
• Includes a 3V CR2032 battery and a metal keychain carabiner.
• Dimensions: 73 x 31 x 11 mm
• If any specific colour required, state this information to the customers note when placing an order.

The remote control supplied is already pre-programmed on buttons ▲ and ▼. You only need to register the remote control to your original receiving unit memory.

Procedure for copying the code from the original remote control:

1. Press and hold the button X on General VATRONIC and then press the button ✓ 4 times.
2. Release both buttons. The red indicator LED on the General VATRONIC remote will briefly flash every two seconds.
3. Place the original remote control that you want to duplicate in front of or next to the General VATRONIC remote.
4. On the original remote control, press and hold the button that you want to duplicate. Keep it pressed until the blue indicator LED on the General VATRONIC remote starts flashing rapidly.
5. At this moment, press the button on the General VATRONIC remote where you want to save the code. The blue LED on the remote will briefly light up and turn off - this confirms the code has been saved.
6. The copy has been successfully created. The General VATRONIC remote needs to be registered with the drive unit (see the manual for the drive/receiver).

How to REGISTER the new remote control into the original main unit:

1. Briefly press the P button on the drive cover or on the Receiving Unit (hereinafter referred to as RU).
2. The red LED will start flashing, allowing the remote control to be paired with the RU.
3. Press and hold the button on the remote control until the LED starts flashing rapidly, then release the button.
4. Within 15 seconds, press the same button on the remote control again and hold it. The LED will start flashing very rapidly, then release the button.
5. After the LED stops flashing, the remote control is successfully registered.

NOTE: If the LED stops flashing before pairing is completed with the RU, the programming was not completed and the RU will not function properly!

One RF General VATRONIC remote for everything: You can clone controls for another gate/garage door, blinds, remotely controlled sockets, and anything else you have at home with RF (radio) remote control on the other 3 buttons in a similar way. Thus, it can control up to 4 different devices/receivers. Receivers can be of different (any) brands and frequencies with both fixed and floating codes. General VATRONIC and General GATE are indeed the ONLY RF remote controls on the market that are truly so universal that you can program codes from various gate and door manufacturers into one remote. Supported frequency 280-870 MHz.
