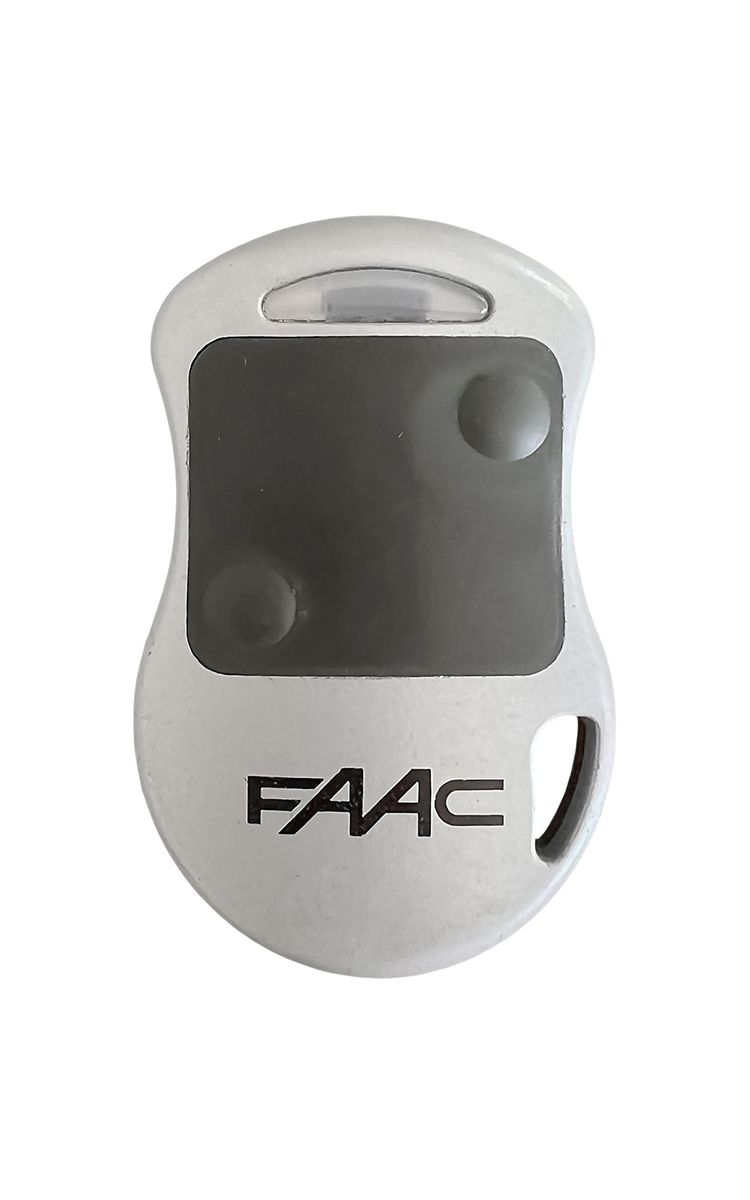

Replacement radio (RF) remote control fully compatible with type FAAC DL2 868 MHz SLH.

A perfect 1:1 copy designed and manufactured by our company – has all functions of the original remote for these FAAC models: D1000, D600, D600 DELPHIN, D600DELPHIN, D600DOLPHIN, D700HS, FAAC 390, FAAC 391, FAAC 400, FAAC 402, FAAC 412, FAAC 413, FAAC 415, FAAC 422 (There may not be listed all compatible models. If you are not sure, just tell us your device model (by online chat, email), we will promptly check, verify if compatible with your device. The verified compatibility is guaranteed by us.)

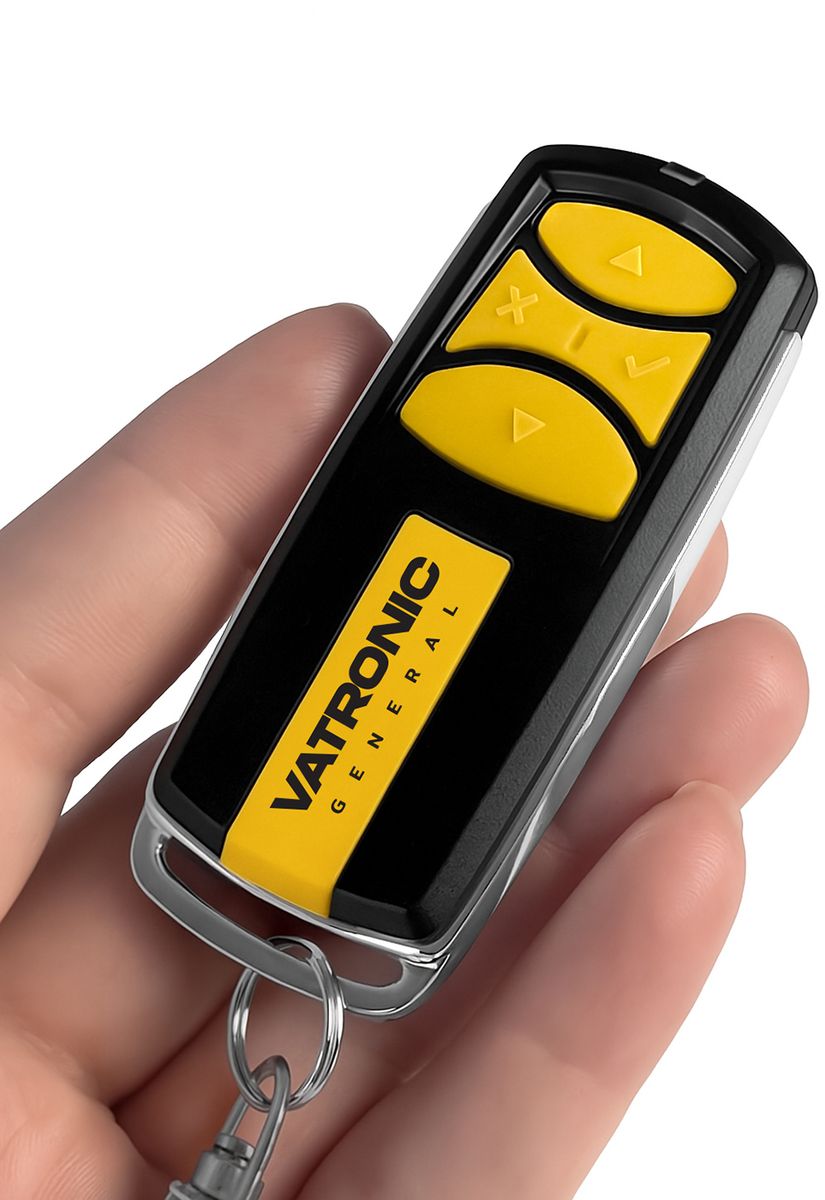

This remote control is available on branded remote control General VATRONIC (shown on the left). We guarantee that the remote control will perform all the functions of the original RC.

• The RF remote control General VATRONIC fully replaces the original remote control.
• Only one single remote control could be used up for 4 different brands or models of different Frequencies (270-870 MHz).
• Remote control works with both fixed and rolling codes.
• Multi-frequency auto-scan remote control.
• Copying/cloning transmitting code/protocol from the original remote.
• Includes a 3V CR2032 battery and a metal keychain carabiner.
• Dimensions: 73 x 31 x 11 mm
• If any specific colour required, state this information to the customers note when placing an order.

The remote control supplied is already pre-programmed on buttons 1 and 2. You only need to register the remote control to your original receiving unit memory.

Procedure for copying the code from the original remote control:

WARNING: Make sure that the original remote you are copying is the MASTER. After pressing any button, the LED should only blink twice and not stay lit continuously!!!

1. Press and hold the button X on General VATRONIC and then press the button ✓ 4 times.
2. Release both buttons. The red indicator LED on the General VATRONIC remote will briefly flash every two seconds.
3. Place the original remote control that you want to duplicate in front of or next to the General VATRONIC control.
4. On the original remote control, press and hold the button that you want to duplicate. Keep it pressed on the original until the red LED on the General VATRONIC control lights up. Then release the button on the original remote control.
5. After a short moment, the red indicator LED on the General VATRONIC control will flash twice (every two seconds). This alert informs the user that to successfully complete the duplication, it is necessary to transmit the source "SEED" code from the original remote control.
6. Prepare the original remote control to send the "SEED" code. Press and hold buttons 1 and 2 on the original control simultaneously. Once the LED on the original remote starts blinking, release the buttons (NOTE: THESE BUTTONS ARE PLACED DIAGONALLY).
7. While the LED on the original remote control is blinking, place the original control back to the General VATRONIC remote. Press the same button on the original remote control as in step 4 and hold it until the LED on the General VATRONIC control changes its blinking speed (it will blink faster) and the color of the indicator LED changes to blue.
8. At this moment, press the button on the General VATRONIC control where you want to save the code. The blue LED on the remote will briefly light up and turn off. This will confirm successful saving of the code to the selected button.
9. The copy has been successfully created. Test the General VATRONIC remote immediately. Sometimes it is also necessary to register with the drive unit (see the manual for the drive/receiver).

How to REGISTER the new remote control into the original main unit:

1. Press and hold buttons P1 and P2 simultaneously on the General GATE remote control.
2. The LED on the remote control will now rapidly blink, release both buttons.
3. Press the button on the Control Unit OPEN A (full opening), the LED indicator OPEN A will start blinking.
4. The LED on the Control Unit will blink for about 5 seconds, during this time it is possible to program the remote control. Press the programmed button on the GENERAL GATE remote. The LED on the Control Unit will illuminate for a long time, then turn off, indicating that the remote control programming process is completed.
5. The new remote control is registered with the Control Unit.

One RF General VATRONIC remote for everything: You can clone controls for another gate/garage door, blinds, remotely controlled sockets, and anything else you have at home with RF (radio) remote control on the other 3 buttons in a similar way. Thus, it can control up to 4 different devices/receivers. Receivers can be of different (any) brands and frequencies with both fixed and floating codes. General VATRONIC and General GATE are indeed the ONLY RF remote controls on the market that are truly so universal that you can program codes from various gate and door manufacturers into one remote. Supported frequency 280-870 MHz.
